Description

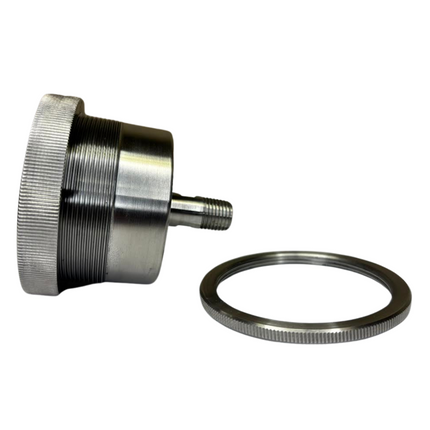

The Ashford DMS450 Subsea Pressure Gauge is a 2.5" (63mm) pressure gauge suitable for depths to 1,463FSW (450 meter). Supplied as standard with a screwed panel mounting ring, the gauge can be universally mounted as direct back mount entry or panel mount with a front flange.
The compact and robust design of this gauge means it is ideal for use on diving bells since it can be used inside or outside the bell. The case is a 316 stainless steel with a 316 stainless steel bourdon tube.
The Subsea 450 Series back entry gauge is an ideal general purpose gauge suitable for all subsea applications down to 450M deep.
Model Number: DMS450 Series
Nominal Size: 2.5" (63mm)
Pressure Range: 0-6,000 PSI (400 BAR)
Maximum Depth: 450 meters Sea Water
Direct Mounting: 1/4" Back Connection
Panel Mounting: Full Diameter Screw Thread Panel Mounting Ring
Working Pressure: Static Load 100% (Fluctuating Load 75% FSD)
Process Connections: 1/4" NPT Male
Accuracy: Class 1.6% to EN8371 (1.6% Full Scale Deflection)
Ambient Temperature: 20/+60C
Process Temperature: 20/+100C
Calibration Temperature: 20C
Temperature Effect: Approximately 0.4% FSD +/10C From Calibration Temperature
Case Material: 316 Stainless Steel
Bezel: 316 Stainless Steel
Wetted Parts To 28 Bar: 316 Stainless Steel Connector , Brass Bourdon Tube
Wetted Parts Above 28 Bar: 316 Stainless Steel Connector & Bourdon Tube
Dial: White Plastic Dial With Black Markings
Pointer: Black Painted Aluminium
Window: 10mm Toughened Float Glass
Cleaning: Degreased, Crossed Oil Can On Dial
Panel Cut Out: 64mm
Option 1 - Calibration: Calibration or Test Certification To National Standards
Option 2 - Oxygen: Fully Oxygen Cleaned, Oxygen On Dial
