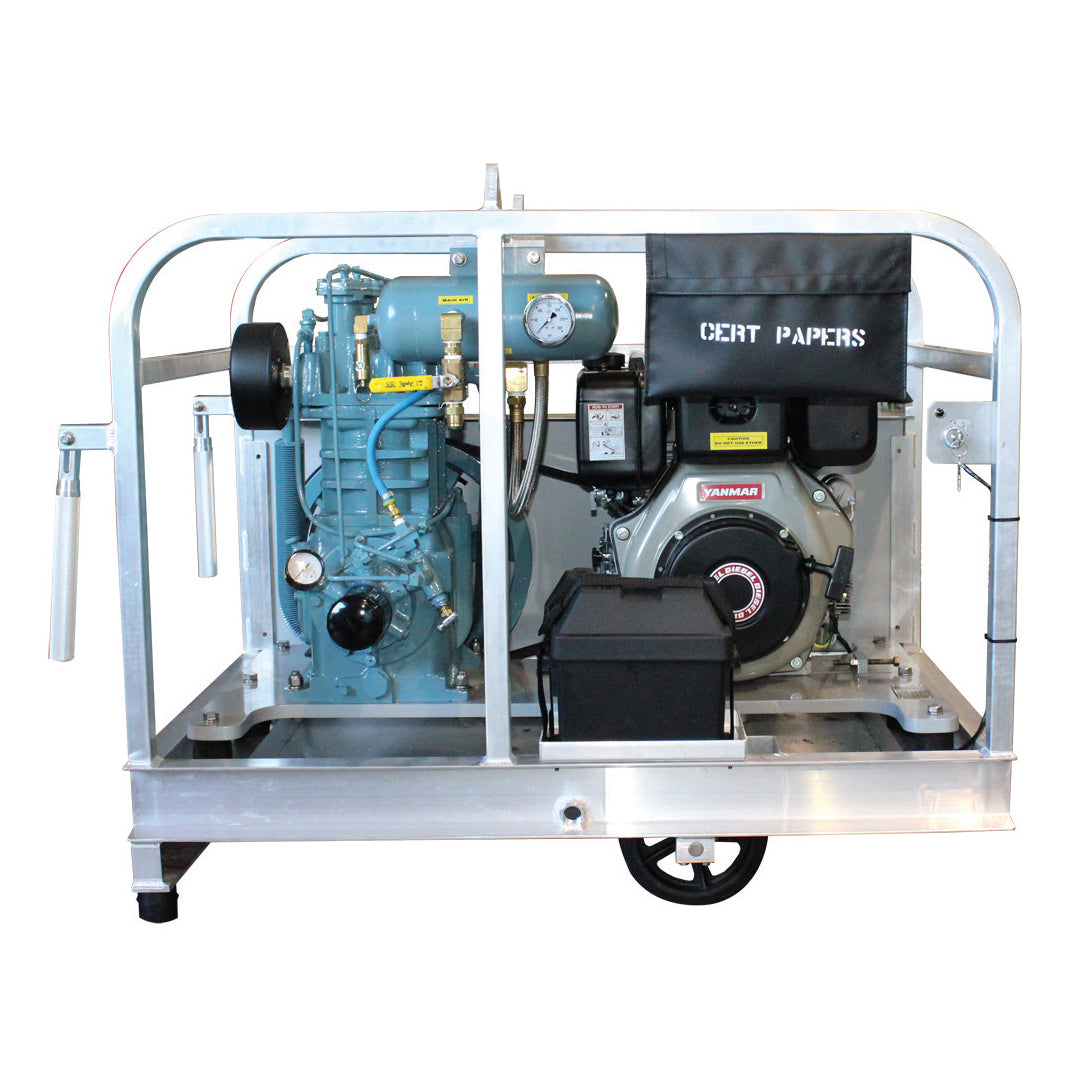

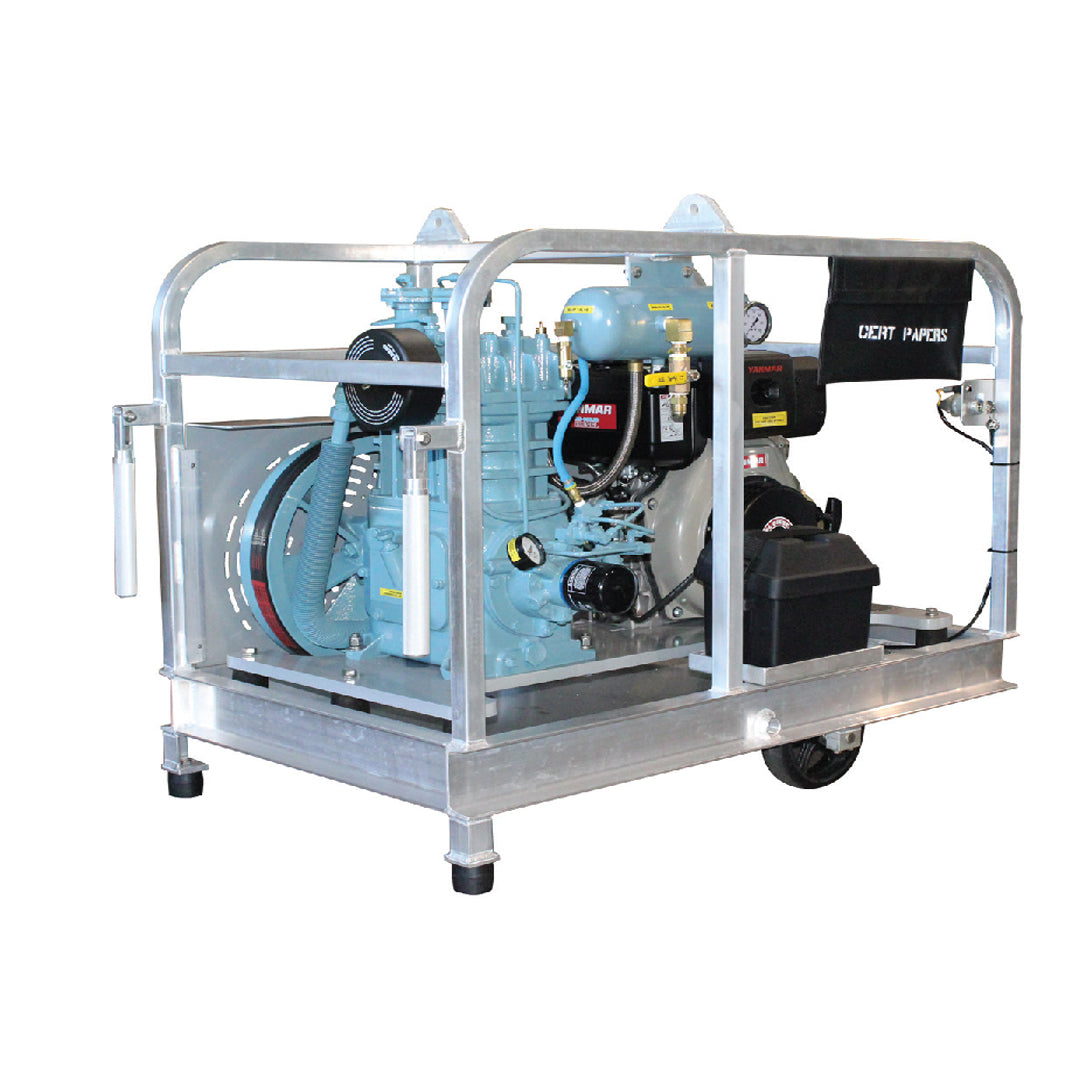

Bay-Tech Industries Quincy 325 / Yanmar L100 Air Compressor Package

Description

The Bay-Tech Industries, Inc. 325Y electric start air compressor package is designed as a mobile, light-weight, compact unit. The Quincy 325 compressor is driven by a Yanmar diesel engine and they are mounted in an all aluminum frame with an isolated base. The isolated base reduces the shanking of the compressor and the engine. The Yanmar L100 and Quincy 325 duo are the standard for small diving compressors due to their reliability. The unit includes dual pad eyes as well as a unit certification pouch for job site documentation.

Standard Unit Specifications

  • Aluminum roll-around frame with handles and wheels
  • Stainless steel surge tank
  • 1-1/2 Gallon fuel tank
  • Aluminum belt guard
  • Isolated inner base, powder coated for durability
  • Stainless steel hardware
  • Stainless steel pressure gauge
  • Brass plumbing
  • Relief valve
  • Epoxy primed and painted compressor

Weight & dimensions (approx.):

  • Weight: 550 LBS
  • Length: 46”
  • Width: 28”
  • Height: 38”

Engine

  • Yanmar L100EE-D Diesel
  • 10HP @ 3600 RPM
  • Pull start

Compressor

  • Quincy 325 climate control
  • Single stage 2-cylinder
  • 24.60 cu.ft displacement
  • 19.20 cu.ft free air delivery
  • 150 PSI set air pressure

Bay-Tech Industries Quincy 325 / Yanmar L100 Air Compressor Package

Product form Login to view price
Free pickup in our shop(s)

SKU: AC325YES-ASSY

Description

The Bay-Tech Industries, Inc. 325Y electric start air compressor package is designed as a mobile, light-weight, compact unit. The Quincy 325 compressor is driven by a Yanmar diesel engine and they are mounted in an all aluminum frame with an isolated base. The isolated base reduces the shanking of the compressor and the engine. The Yanmar L100 and Quincy 325 duo are the standard for small diving compressors due to their reliability. The unit includes dual pad eyes as well as a unit certification pouch for job site documentation.

Standard Unit Specifications

  • Aluminum roll-around frame with handles and wheels
  • Stainless steel surge tank
  • 1-1/2 Gallon fuel tank
  • Aluminum belt guard
  • Isolated inner base, powder coated for durability
  • Stainless steel hardware
  • Stainless steel pressure gauge
  • Brass plumbing
  • Relief valve
  • Epoxy primed and painted compressor

Weight & dimensions (approx.):

  • Weight: 550 LBS
  • Length: 46”
  • Width: 28”
  • Height: 38”

Engine

  • Yanmar L100EE-D Diesel
  • 10HP @ 3600 RPM
  • Pull start

Compressor

  • Quincy 325 climate control
  • Single stage 2-cylinder
  • 24.60 cu.ft displacement
  • 19.20 cu.ft free air delivery
  • 150 PSI set air pressure
