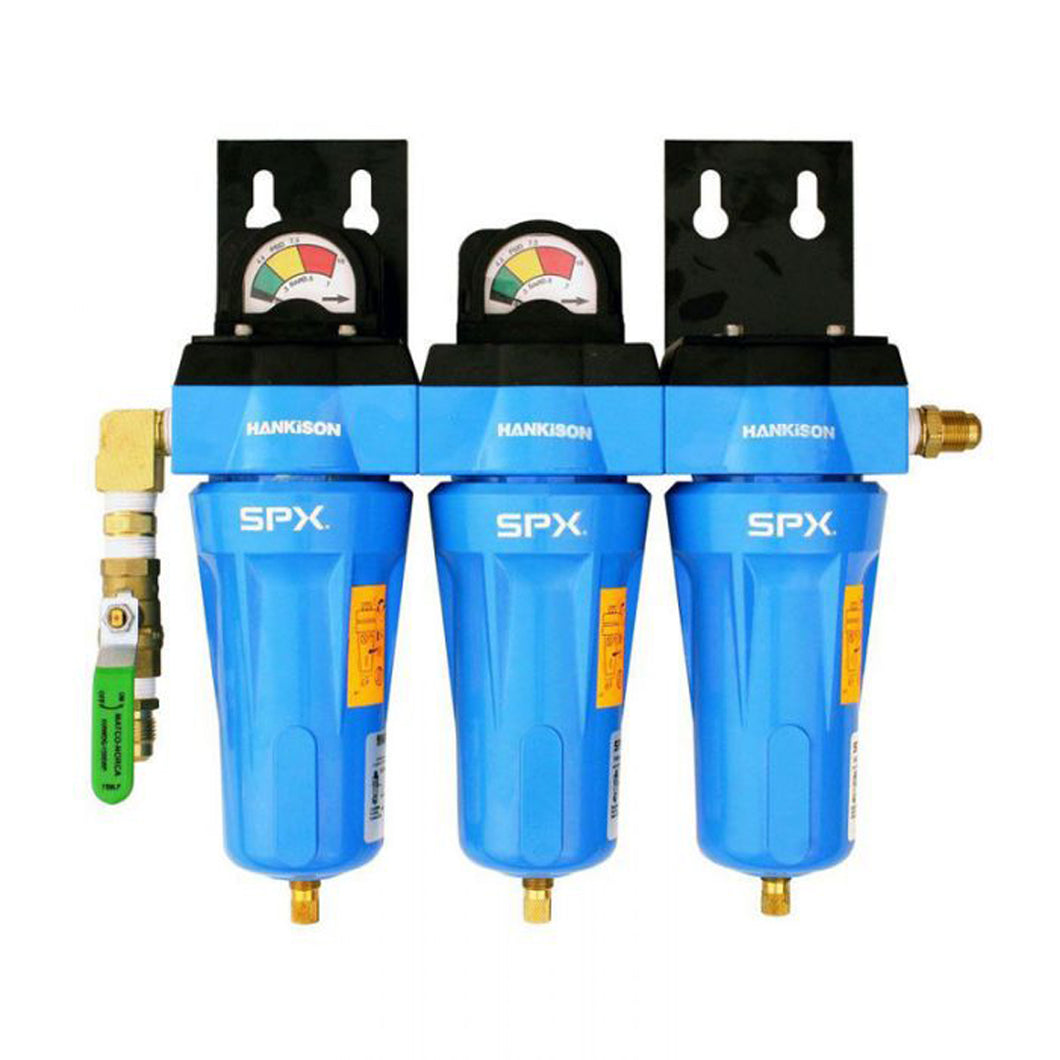

The low pressure SPX Hankison HF 16 series filter package includes three-stage filtration for up to 35 SCFM (991 L/min) flow at 100 psi (7 bar). Comes equipped with a #10 SAE inlet fitting, on/off ball valve, and a #10 SAE fitting for a diver's hose. When used properly this filter pack removes moisture, 99.9999+% of particles 0.01 micron or larger, and oil vapor down to <0.003 ppm/w.

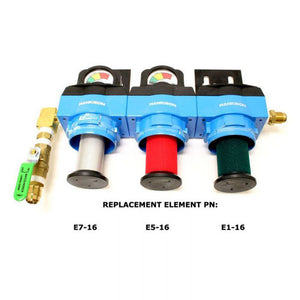

ELEMENT SPECIFICATIONS
First Stage: Hankison E7-16 Filter Element
- Grade 7 Filter: Air Line. Provides removal of liquid water and oil.
Second Stage: Hankison E5-16 Filter Element
- Grade 5 Filter: High Efficiency Oil Removal. Designed for coalescing fine water and oil aerosols.
Third Stage: Hankison E1-16 Filter Element
- Grade 1 Filter: Oil Vapor Removal. Removes oil and hydrocarbon vapors normally adsorbed by activated carbon.
